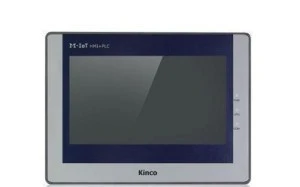

Display 4.3” TFT
Resolution 480x272 Pixels
Color 256K Colors
Backlight LED
Brightness 400 cd/m2
Backlight Life 50,000 Hrs
Touch Panel 4-Wire Precision Resistance Network
Processor 700 MHz RISC
Memory 128MB Flash + 64MB DDR2
Expandable Memory 1 USB Host
Recipe Memory & RTC 256KB + RTC
Program Download 1 USB Slave / Ethernet / USB Flash Disk
Program Port USB2.0 SLAVE
CAN Communication Port 1
Supports CAN Free Communication
Serial / COM Port 2*RS485 PORT1, PORT2, max. 115.2kbps
PORT 1 supports Kinco programming protocol, MODBUS RTU master and slave protocol,
free serial protocol.
PORT 2 supports MODBUS RTU master and slave protocol, free serial protocol.
High-Speed Counter 4
Supports Single-Phase, Double-Phase UP/DOWN, and AB Phase Pulse Input
4-Channel Maximum Counting Frequency: 50KHz
