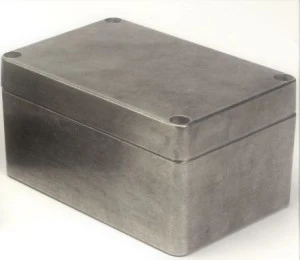

Obudowa Srebrny IP68 Silikon, 200 x 140 x 90mm, RS PRO

Cena:
9 szt.
do 7 dni roboczych
Materiał korpusu = Aluminium
Długość zewnętrzna = 200 mm
Wysokość zewnętrzna = 90 mm
Szerokość zewnętrzna = 140 mm
Wymiary zewnętrzne = 200 x 140 x 90mm
Klasa IP = IP66, IP67, IP68
Kolor = Srebrny
Kolor pokrywy = Srebrna
Z kołnierzem = Nie
Materiał uszczelki = Silikon

RS PRO Aluminium Natural General Purpose Enclosure, IP66, IK09. RS PRO aluminium enclosures are an excellent choice of enclosure for protecting internal electrical parts and components from dust and water ingress. The enclosures consist of a base and lid, that can be attached via screws to create a secure seal and can be mounted to a wall or surface. This range of RS PRO aluminium enclosures are available in various of sizes to suit multiple environments. This selection of high quality and durable enclosures also feature a neoprene gasket and provide IP66 and IK09 ratings, ensuring the enclosures are protected from dust and water ingress as well damage from mechanical impact. With a wide service temperature range of -40°C to +100°C, these RS PRO aluminium enclosures will also offer excellent protection even in tough environments. Features and benefits. Neoprene gasket providing a watertight seal with IP66 protection Aluminium construction with paint finish Available in a range of sizes to accommodate various applications Ideal for protecting internal components from dust and water Robust, lightweight and easy to install High resistance to corrosion and shock resistance Temperature range; -40°C to +100°C IK09 rating ensuring protection from heavy force and impact. Applications. This range of aluminium enclosures are ideal for use as a general purpose enclosure or electronic enclosure, due to their lightweight yet durable design. Aluminium enclosures are used in a wide range of applications such as: Electrical Button switching elements Telecommunication Network Junction boxes Mechanical and automation. What is the IP rating?. IP (Ingress Protection) levels refer to the level of protection materials such as an electrical enclosure has against solids such as dust, debris and liquids. The first digit identifies the level of protection from a physical intrusion whereas the second digit identifies the level of protection from water and other liquids. A lower IP rating such as IP54 offers protection from limited dust ingress whereas a high IP rating such as IP78 can offer complete dust proof protection plus a continuous level of protection underwater. This enclosure offers an IP66 rating, offering protection from dust ingress and water. Can this enclosure be used outside?. This enclosure offers sufficient protection from water and dust ingress and can be used outdoors, however care should be taken to prevent the enclosure from being submerged in water for extended periods of time. If I modify the enclosure will the IP rating remain the same?. Any modifications made to the enclosure will subsequently reduce the IP protective level. Benefits of aluminium. Aluminium is a lightweight yet durable material that offers a wide range of benefits including thermal efficiency, fire safety, corrosive resistance and more, providing a versatile material that can be used in various projects.

Dane techniczne

Materiał uszczelki
Silikon
Kolor
Srebrny
Kolor pokrywy
Srebrna
Szerokość zewnętrzna
140 mm
Długość zewnętrzna
200 mm
Klasa IP
IP66, IP67, IP68
Z kołnierzem
Wymiary zewnętrzne
200 x 140 x 90mm
Wysokość zewnętrzna
90 mm
Materiał korpusu
Aluminium

Dane logistyczne

Ean
5059044135679
Typ przesyłki - dla 1 jednostki sprzedażowej
Paczka
