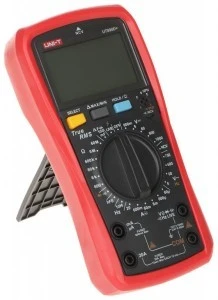

MIERNIK UNIWERSALNY UT‑890D+ UNI‑T
- Producent:UNI-T
- Indeks producenta:UT-890D+
- Indeks TIM:0001-00020-21247
- Kategoria:Multimetry
- Ocena:
Cena:
| Pomiar napięcia DC: | 600 mV ± (0.5% + 5) @ 0.1 mV , 6 V ± (0.5% + 2) @ 0.001 V , 60 V ± (0.5% + 2) @ 0.01 V , 600 V ± (0.5% + 2) @ 0.1 V , 1000 V ± (0.7% + 5) @ 1 V |
| Pomiar napięcia AC: | 6 V ± (1.0% + 3) @ 0.001 V , 60 V ± (0.8% + 3) @ 0.01 V , 600 V ± (0.8% + 3) @ 0.1 V , 750 V ± (1.0% + 10) @ 1 V |
| Pomiar prądu DC: | 60 µA ± (0.8% + 8) @ 0.01 µA , 600 µA ± (0.8% + 8) @ 0.1 µA , 6 mA ± (0.8% + 8) @ 0.001 mA , 60 mA ± (0.8% + 8) @ 0.01 mA , 600 mA ± (1.2% + 5) @ 0.1 mA , 20 A ± (2.0% + 5) @ 0.01 A |
| Pomiar prądu AC: | 60 µA ± (1% + 12) @ 0.01 µA , 600 µA ± (1% + 12) @ 0.1 µA , 6 mA ± (1% + 12) @ 0.001 mA , 60 mA ± (1% + 12) @ 0.01 mA , 600 mA ± (2% + 3) @ 0.1 mA , 20 A ± (3% + 5) @ 0.01 A |
| Pomiar rezystancji: | 600 Ω ± (0.8% + 5) @ 0.1 Ω , 6 kΩ ± (0.8% + 3) @ 0.001 kΩ , 60 kΩ ± (0.8% + 3) @ 0.01 kΩ , 600 kΩ ± (0.8% + 3) @ 0.1 kΩ , 6 MΩ ± (0.8% + 3) @ 0.001 MΩ , 60 MΩ ± (3% + 10) @ 0.01 MΩ |
| Pomiar pojemności: | 6 nF ± (4% + 10) @ 0.001 nF , 60 nF ± (4% + 10) @ 0.01 nF , 600 nF ± (4% + 10) @ 0.1 nF , 6 µF ± (3% + 10) @ 0.001 µF , 60 µF ± (3% + 10) @ 0.01 µF , 600 µF ± (3% + 10) @ 0.1 µF , 6 mF ± (5% + 10) @ 0.001 mF , 60 mF ± 10 % @ 0.01 mF , 100 mF ± 10 % @ 0.1 mF |
| Pomiar indukcyjności: | |
| Pomiar częstotliwości: | 9.999 Hz ... 9.999 MHz ± (0.1% + 5) @ 0.001 Hz ... 0.001 MHz |
| Pomiar temperatury: | |
| Automatyczna zmiana zakresów pomiarowych: | |
| hFE: | |
| Test diody: | |
| Sygnalizacja ciągłości obwodu: | |
| Sprawdzanie stanów logicznych TTL: | |
| RS-232: | |
| USB: | |
| Wybrane cechy: | |
| Zasilanie: | 2 x Bateria 1.5V, typ AAA/LR03 |
| Waga: | 0.34 kg |
| Wymiary: | 183 x 88 x 56 mm |
| Producent / Marka: | UNI-T |
| Gwarancja: | 2 lata |
